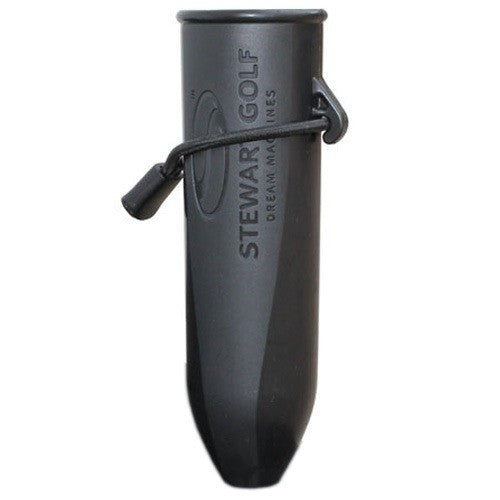

This umbrella holder is designed for use with both the X-Series Electric Golf Trolley (of any age) and the F1 Lithium Electric Golf Trolley. It is not compatible with Q-Series trolleys.
When used with the F1 Lithium, the umbrella holder simply screws into the thread location already on the handle.

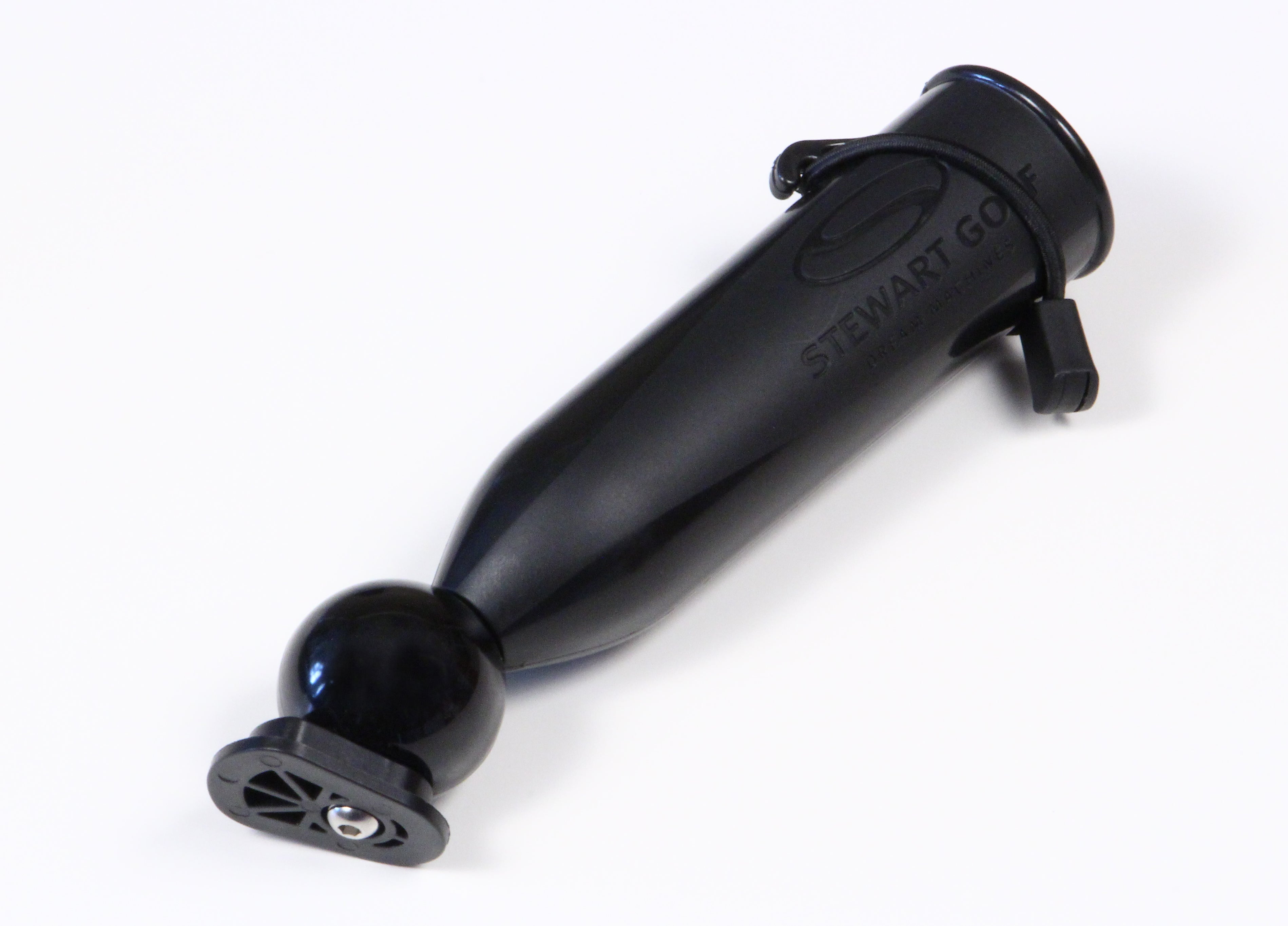

For use with all X Series, fit the black ball into the centre ball holder location (this is secured in place by a backing plate and screw). This black ball can be left in place at all times as it only takes up the same amount of space as a golf ball. Once in place then the umbrella holder can be fitted in seconds as necessary.
When the umbrella is in place, hook the elastic loop over the top of the handle.
The internal diameter of the umbrella holder is 40mm and the depth 130mm.
This umbrella holder is not designed to hold an umbrella while the cart is in motion. This is a safety precaution designed to remove the chance of the trolley becoming unstable when used in high winds, especially when a remote control machine could be a distance away from the user.
We recommend using a rain cover to keep your clubs dry, so you can keep yourself dry with an umbrella.
