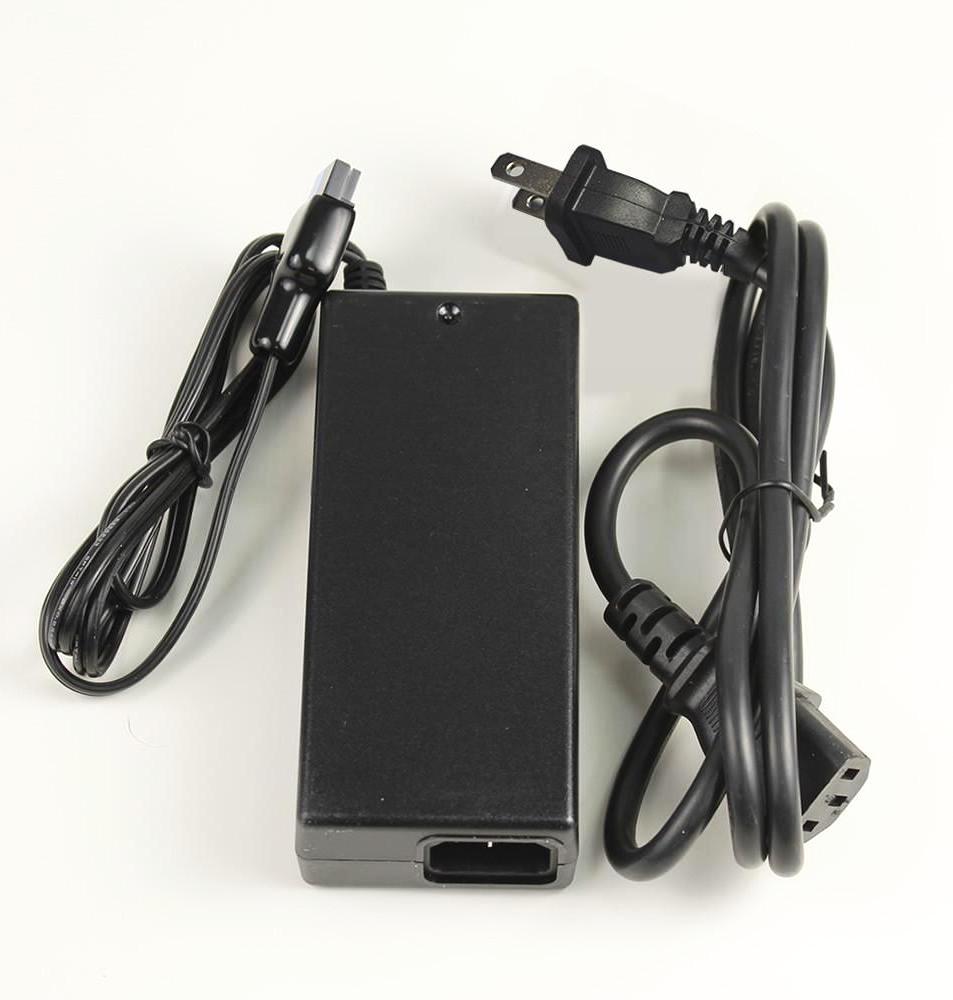

Lithium Battery Charger (X-Series)

The Stewart Golf lithium battery is supplied with blue/black connectors, but your trolley may be fitted with red/black connectors depending on how old it is. This change has been made to emphasize the importance of using the correct battery charger with this battery - using the wrong charger could damage the battery. If your lithium battery has red/black connectors, this lithium charger is still compatible for use with your battery.

Click here to download the Battery & Charger Maintenance Guide

Charger: Input 100/240V, 50/60 Hz   Output 14.6V, 5 Amp
Charger Time: Up to 5 hours

Size: 155mm x 70mm x 50mm ( 6.1” x 2.7” x 2.0”)

Stewart Golf 20Ah battery specification:

Type: LiFePO4 ( Lithium Phosphate)
Voltage: 12 Volts nominal
Capacity: 20 Amp hour
Size: 188mm x 160mm x 75mm  (7.4” x 6.3” x 2.9”)
Weight: 2.9Kg  (5.7lb)
Life: More than 1,000 cycles (see below)
Warranty: 2 years
Management: Internal integrated cell management system
Connection: Output Torberry, separate charger socket
Accessories: Quality fitted soft-touch protection bag
