Standard Lithium Battery & Charger (X-Series)

The new Lithium Phosphate 20Ah battery has been developed as a true 12V battery, which means that it can be used in any X Series (X3R, X5, X7, X9). There are no electronics changes or adjustments necessary; you can just start using the new battery as a direct replacement.

The battery is protected by a sophisticated battery management system that constantly monitors every cell to ensure the battery is always optimized for best performance and life. It is supplied with complete with battery lead and protective neoprene case. It is also supplied with a specially developed battery charger which will help keep the battery in top condition.

Click here to download the Battery Maintenance Guide

STEWART GOLF 20Ah BATTERY SPECIFICATIONS
Type: LiFePO4 ( Lithium ion Phosphate)
Voltage: 12 volts nominal
Capacity: 20 Amp hour
Sizes: 188mm x 160mm x 75mm  (7.4” x 6.3” x 2.9”)
Weight: 2.6Kg  (5.7lb)
Life: More than 1,000 cycles
Warranty: 2 years
Management: Internal integrated cell management system

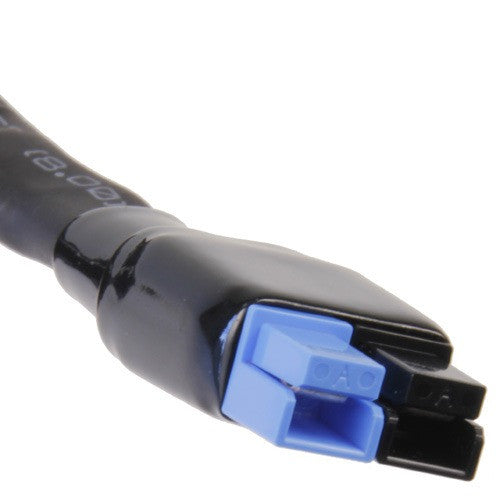

Connection: Output Torberry, separate charger socket
Accessories: Quality fitted soft-touch protection bag
Charger: Input 100/240V, 50/60 Hz   Output 14.6V, 2Amp
Charger Time: 10.0 to 10.5 hours
Sizes: 155mm x 70mm x 50mm ( 6.1” x 2.7” x 2.0”)
Weight: 0.4Kg  (0.9lb)
